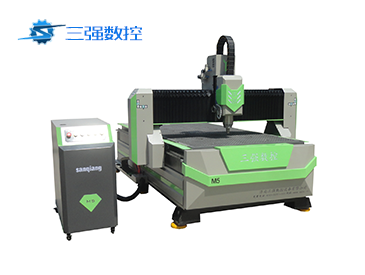

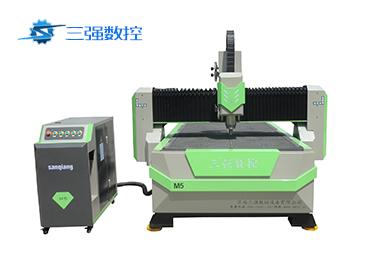

三強SQ-M5高光迷你機加工中心
產品分類：產品中心
性能特點
Characteristics：
◆10毫米壁厚200*200鋼機構，整機3噸重，淬火處理后經五面鉆加工，確保床身的剛性和精度。
◆整機采用進口高精密研磨齒條傳動，提高機車的加工精度和穩(wěn)定性。
◆標配4把換刀刀庫，換刀準確，適用于多種工藝加工，可選配8把換刀。
◆9.0KW換刀主軸，3萬轉速，切面光潔。
◆機器配臺灣850W交流伺服驅動電機，日本新寶減速機。
◆The weight of the machine which is 10 mm thick and made by 200*200 steel is 3Ton. It has 5 surfaces of drill processing after the tempering treatment, for making sure the machine’s rigidity and accuracy.
◆It improves the processing accuracy and stability because the whole machine is used high precise grinding rack gear.
◆The standard equipped is 4 cutters with precise cutter switching, and is suitable for multi craft processing. Besides, it’s optional to have 8 cutters switching.
◆The cutter switching axis is 9 KW and the turning speed is 30,000, the surface is cut is smoothy.
◆The machine has Taiwan 850W alternating current servo motor and Japanese SHIMPO reduction gear.
產品參數
Product Parameter ：
